Only 1 left in stock!
Axis Foils
Axis Pump and Glide
Axis Pump and Glide
Couldn't load pickup availability
The AXIS PNG 1010 Carbon Front wing is a new generation of high aspect wings, focusing on long, fast gliding and pumping. Using a different foil section than our 900 and 1000 carbon wings, the 1010 is designed with easy Downwinding in mind, while offering tremendous amount of glide, and control.
The PNG 1010 wing is not only a gliding machine. It also works amazingly for SUP and SURF on fast riding small to medium size waves, as well as wingfoiling, pumping and foiling behind the boat.

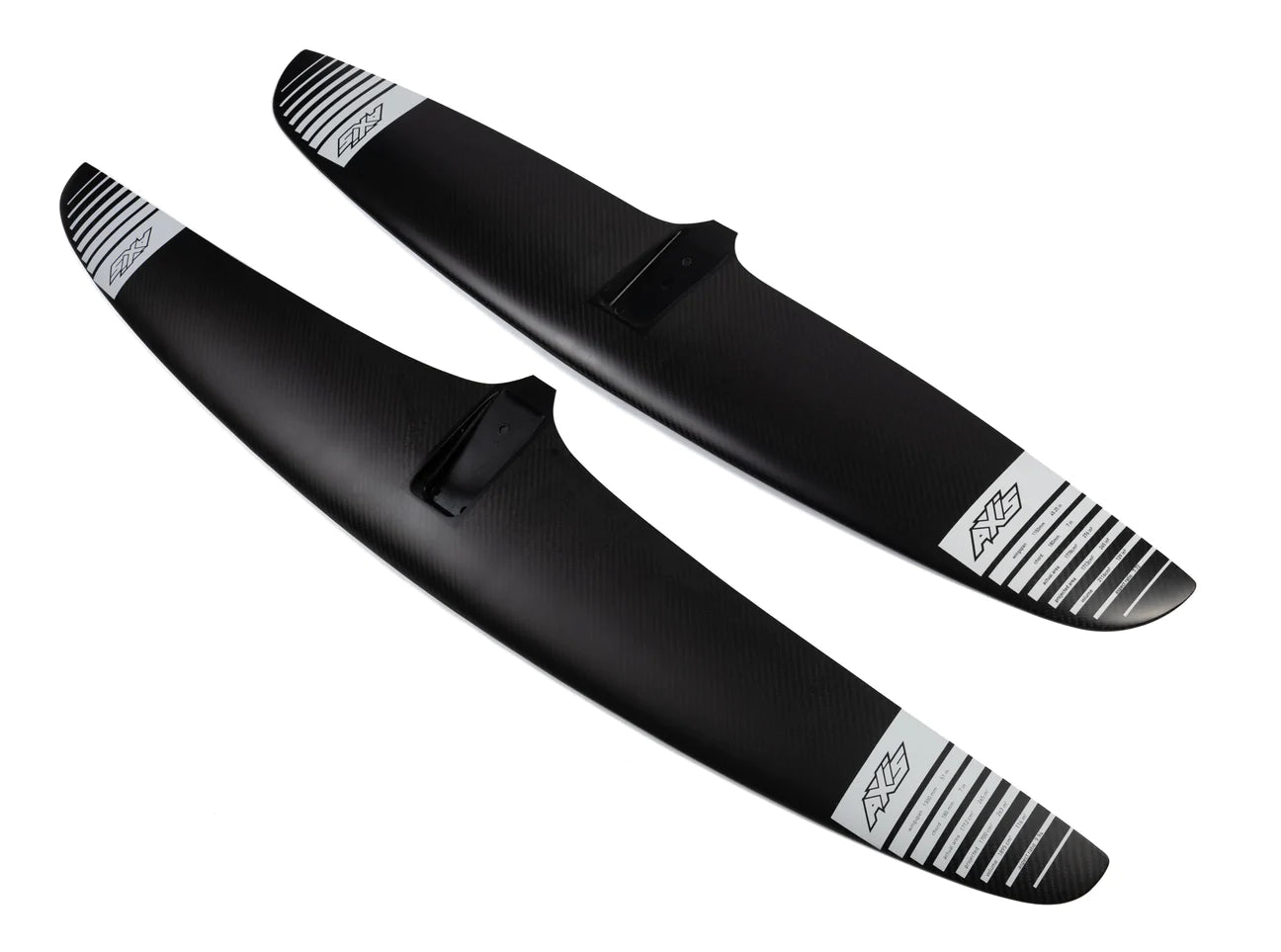

The AXIS PNG 1010, together with the 1300, 1150 and the 910, 910B and 850 form our Pump and Glide wing family.
The PNG 1010 carbon wing connects to the red fuselages with 3 x M8, 20mm screws.
The graphics on the wings give you all possible measurements so you can best compare and also quickly swap pieces or get new accessories for your foil.

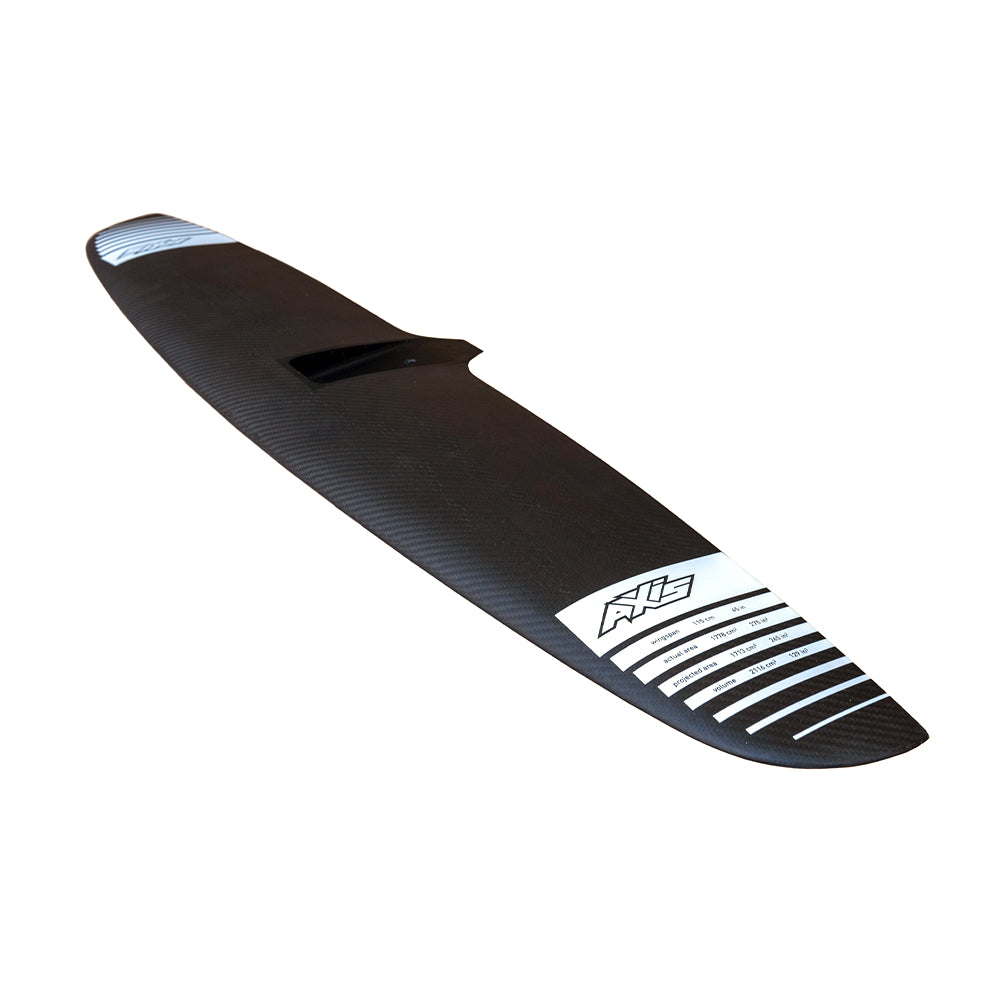

AXIS PNG 1010 Carbon Wing
Technical Data:
WINGSPAN: 1010 mm / 40 inches
MAX CHORD: 160mm
ACTUAL AREA 1430 square cm / 222 square inches
PROJECTED AREA: 1430 square cm / 222 square inches
VOLUME: 1732 cubic cm / 106 cubic inches
Recommended use:
Downwinding - High Performance / Lighter wind
SUP / Surf - High Performance / smaller to medium size waves
Wing Foiling, lighter winds
Pump Foiling
Wake Foiling
Rear Wing Options:
- 460mm Carbon for high speed and loose turning (advanced)
- 440mm Carbon for control and stability (all levels)
- 400mm Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
- 370mm Carbon for loose feel and fast turning, with less stability (intermediate)
When you purchase the AXIS PNG 1010mm carbon front wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.
Assembly

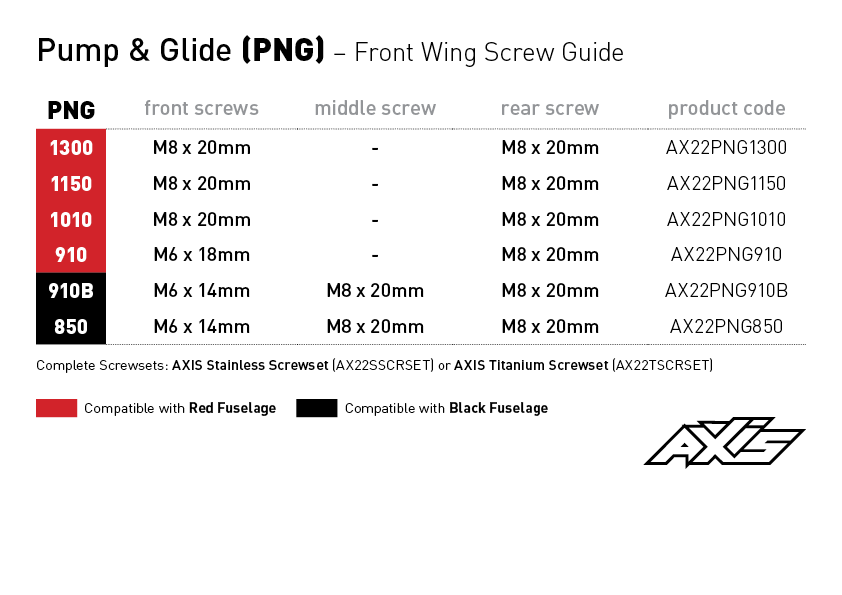

What screws to mount wing to the fuselage:
PNG Wing | Front Screws | Middle Screw | Rear Screw |
1300mm x 180mm | M8 x 20mm | no screw needed | M8 x 20mm |
1150mm x 180mm | M8 x 20mm | no screw needed | M8 x 20mm |
1010mm x 170mm | M8 x 20mm | no screw needed | M8 x 20mm |
910mm x 160mm | M8 x 20mm | no screw needed | M8 x 20mm |
910mm x 160mm | M6 x 14mm | M8 x 20mm | M8 x 20mm |
850mm x 150mm | M6 x 14mm | M8 x 20mm |
